80 mm Toilet Seat Bolt Set

Description

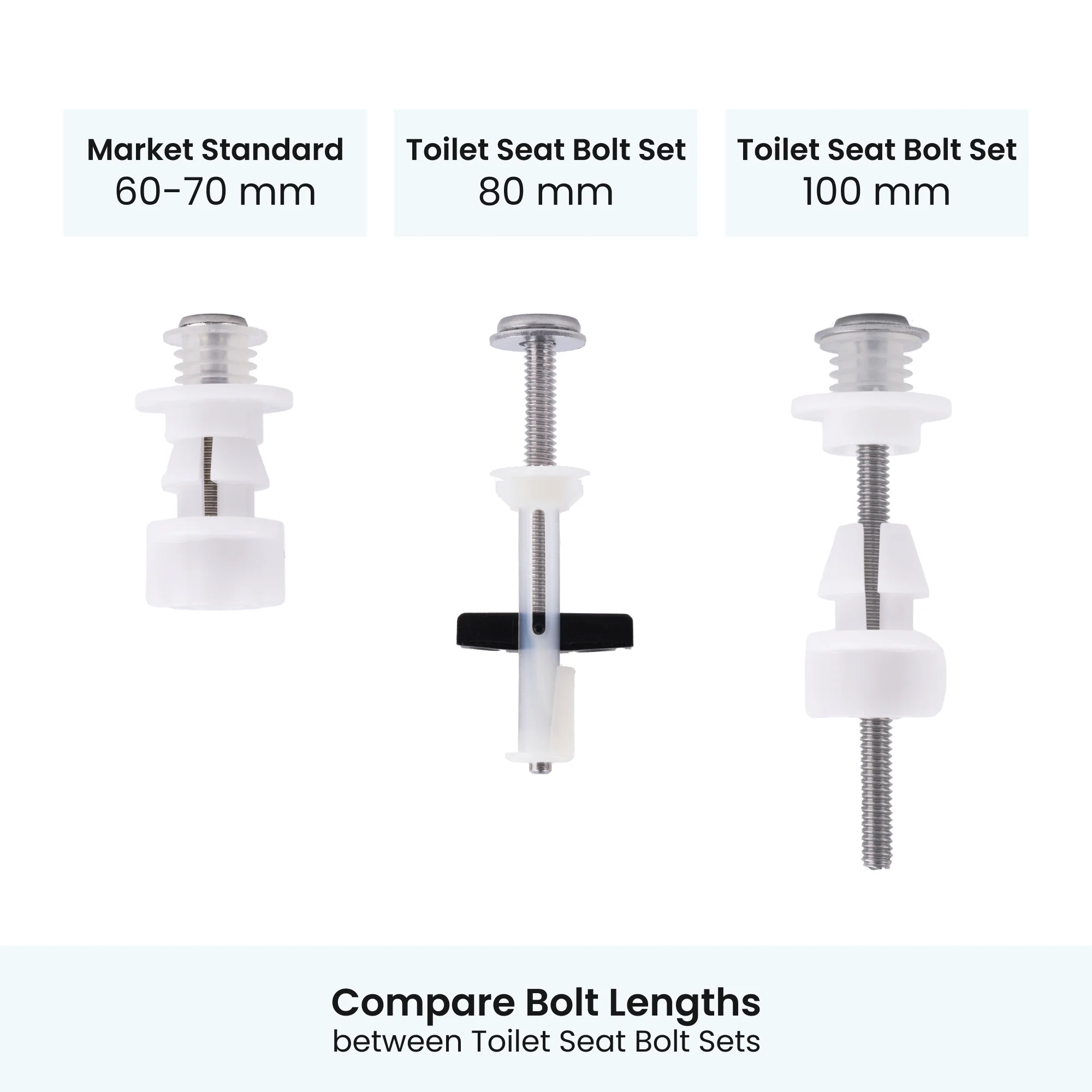

Alternative toilet seat bolts at a longer length of 80 mm if existing toilet seat bolts are too short for bidet installation.

Parts

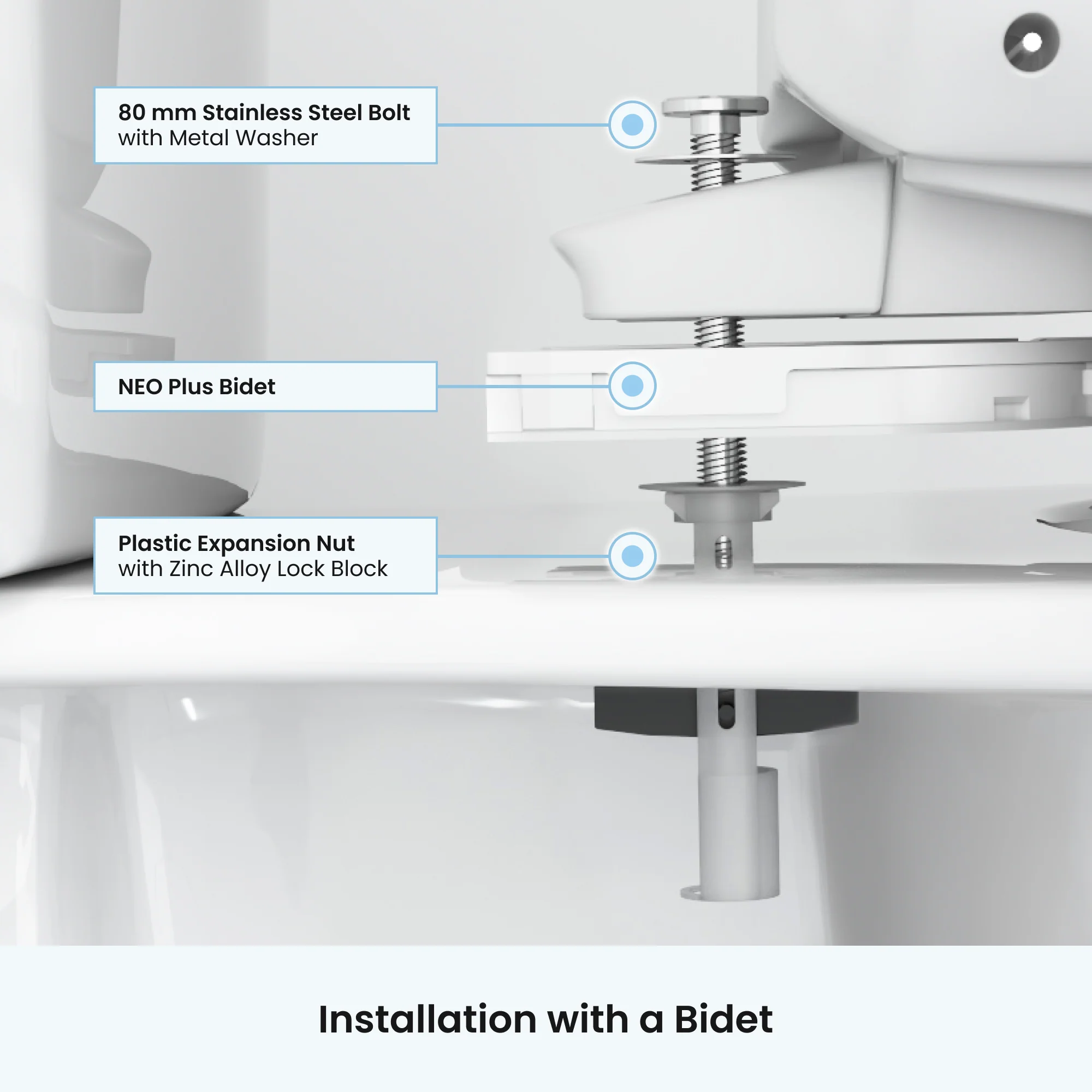

• 2 x 80 mm Stainless Steel SUS304 Bolt with Metal Washer

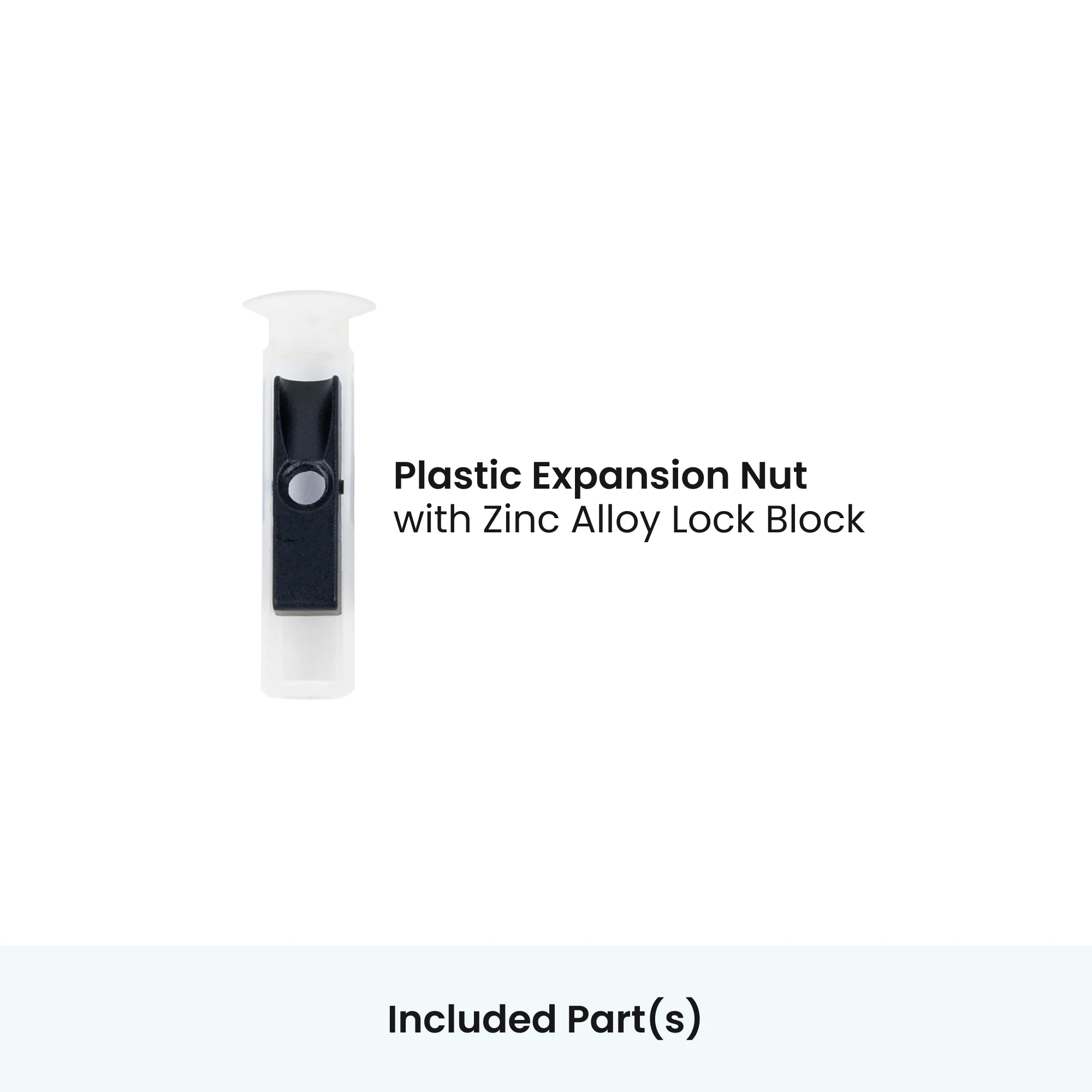

• 2 x Plastic Expansion Nut with Zinc Alloy Lock Block

Installation Steps with LUXE Bidet

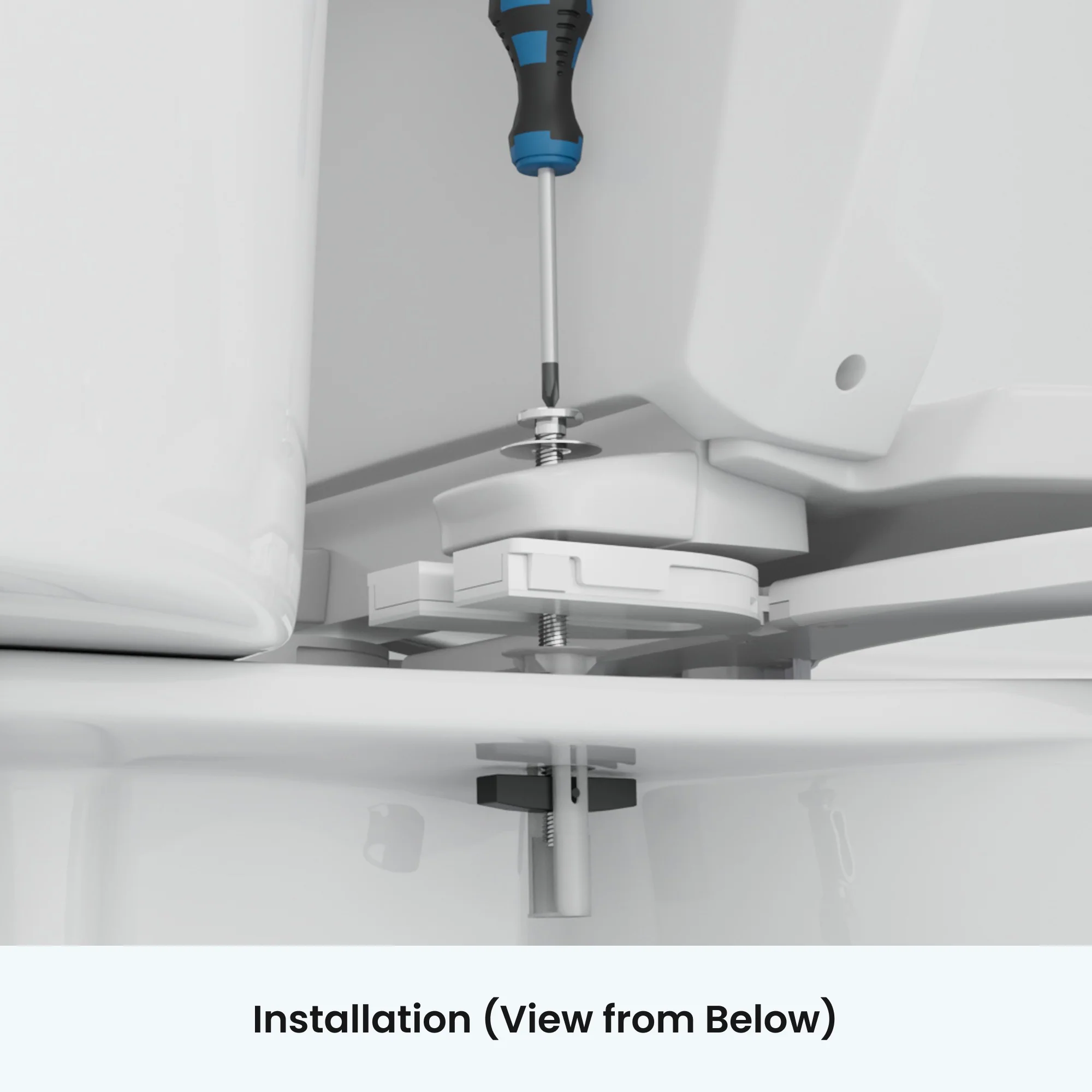

1. Insert the Plastic Expansion Nuts into the holes from the top side of the toilet bowl.

2. Lay the bidet attachment over the toilet bowl. Then place the toilet seat on top of the bidet, aligning the bidet and toilet seat at the bolt holes.

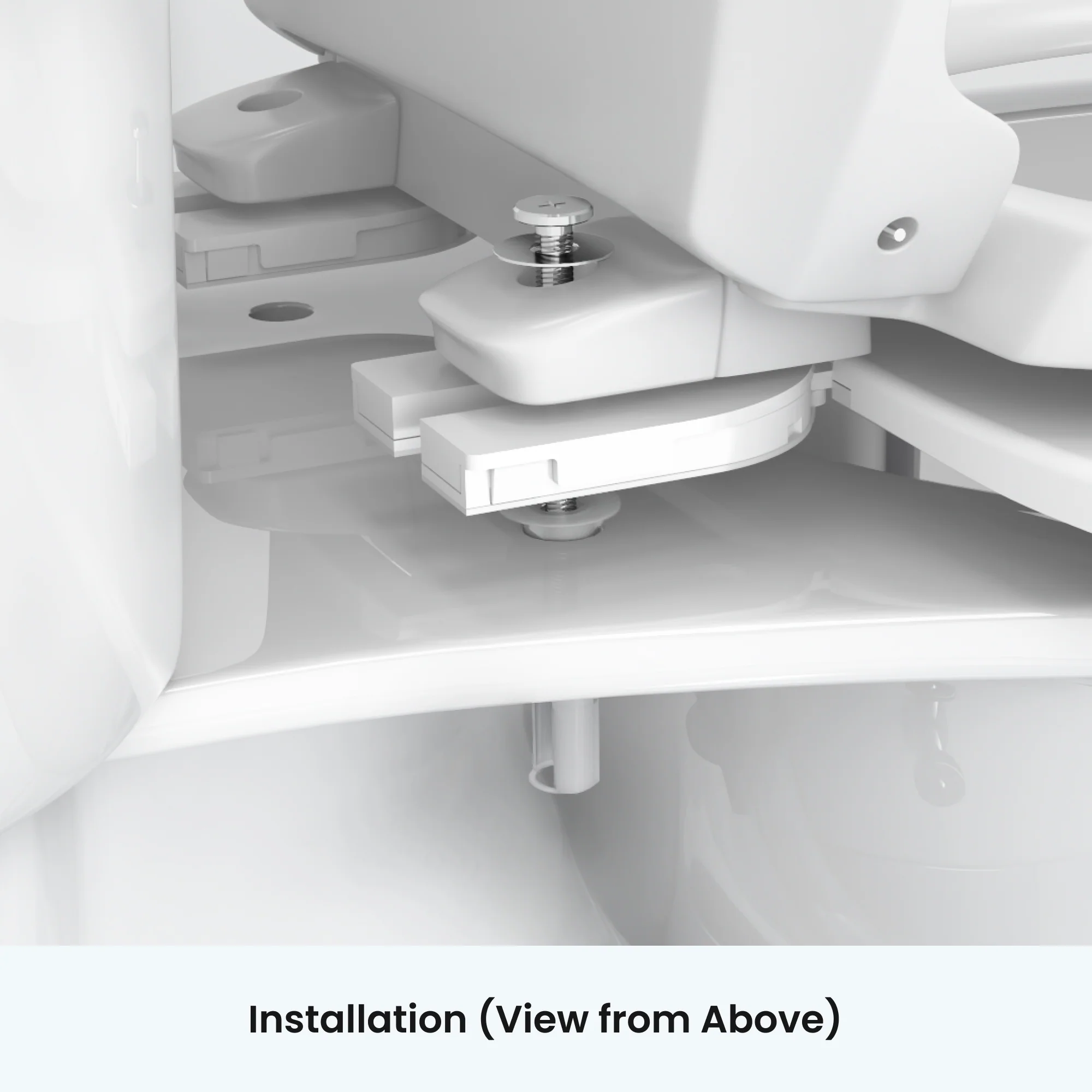

3. Insert the Stainless Steel Bolts with the Metal Washers into the Plastic Expansion Nuts and tighten the bolts with a screwdriver from the top.

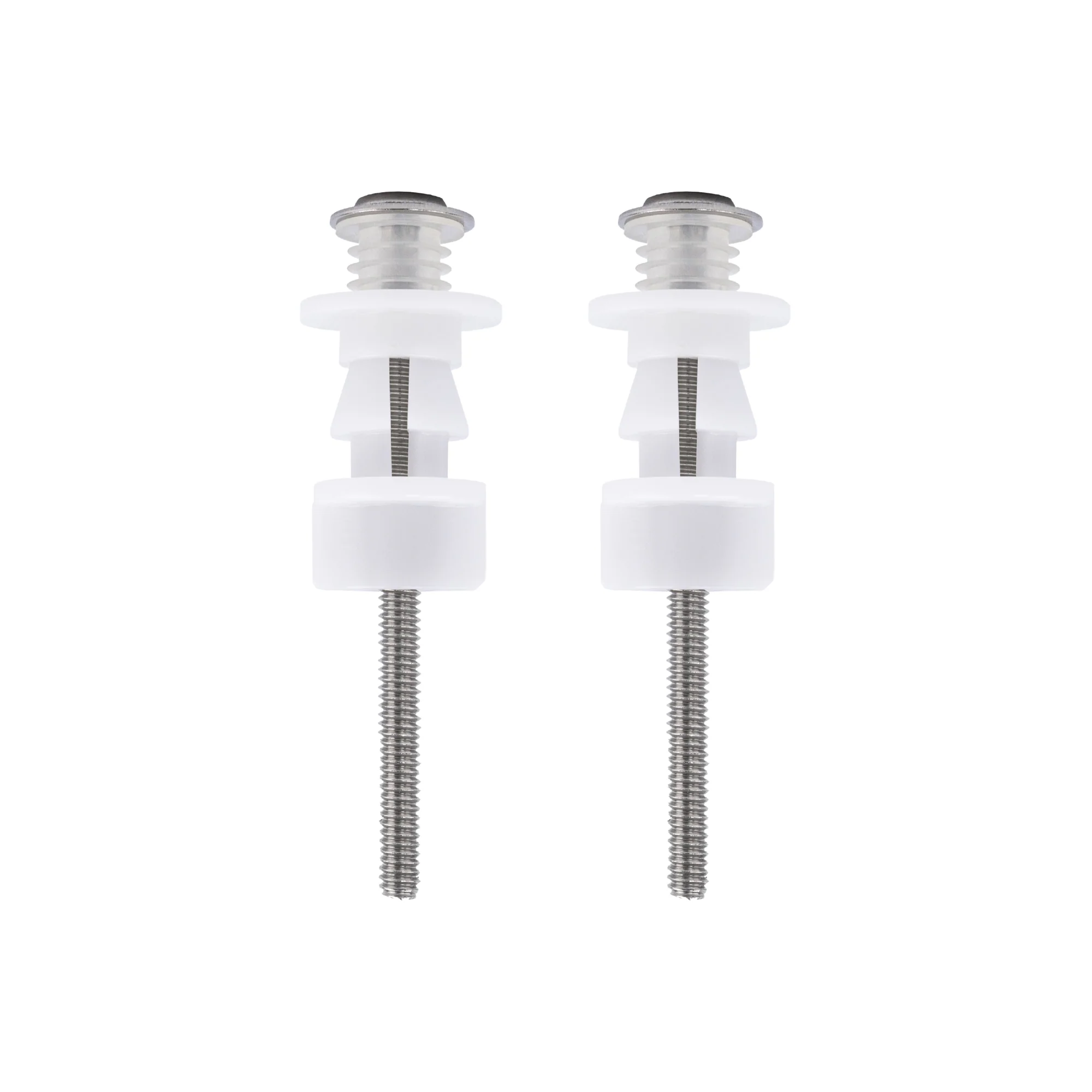

100 mm Toilet Seat Bolt Set

Description

Alternative toilet seat bolts at a longer length of 100 mm if existing toilet seat bolts are too short for bidet installation.

Parts

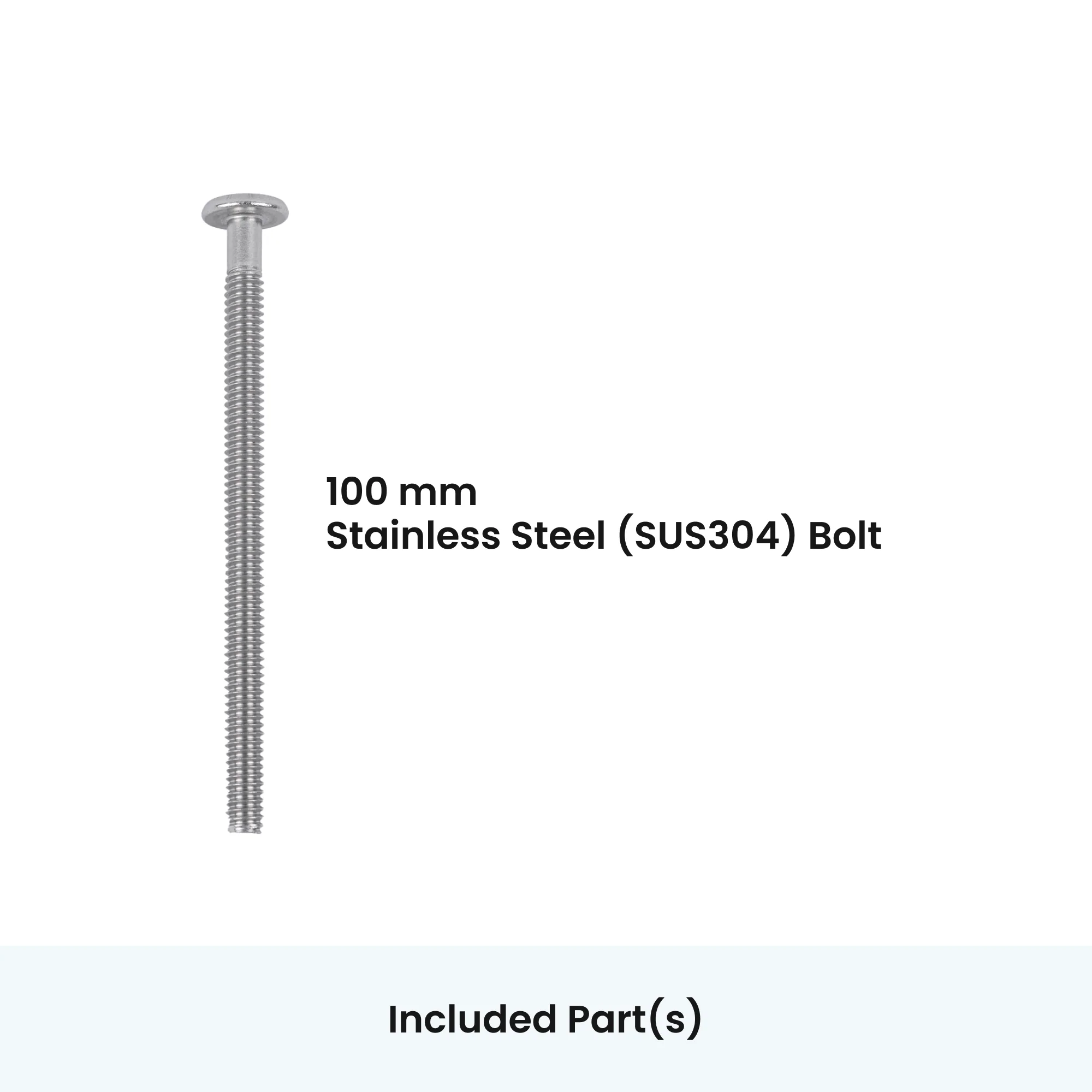

• 2 x 100 mm Stainless Steel SUS 304 Bolt

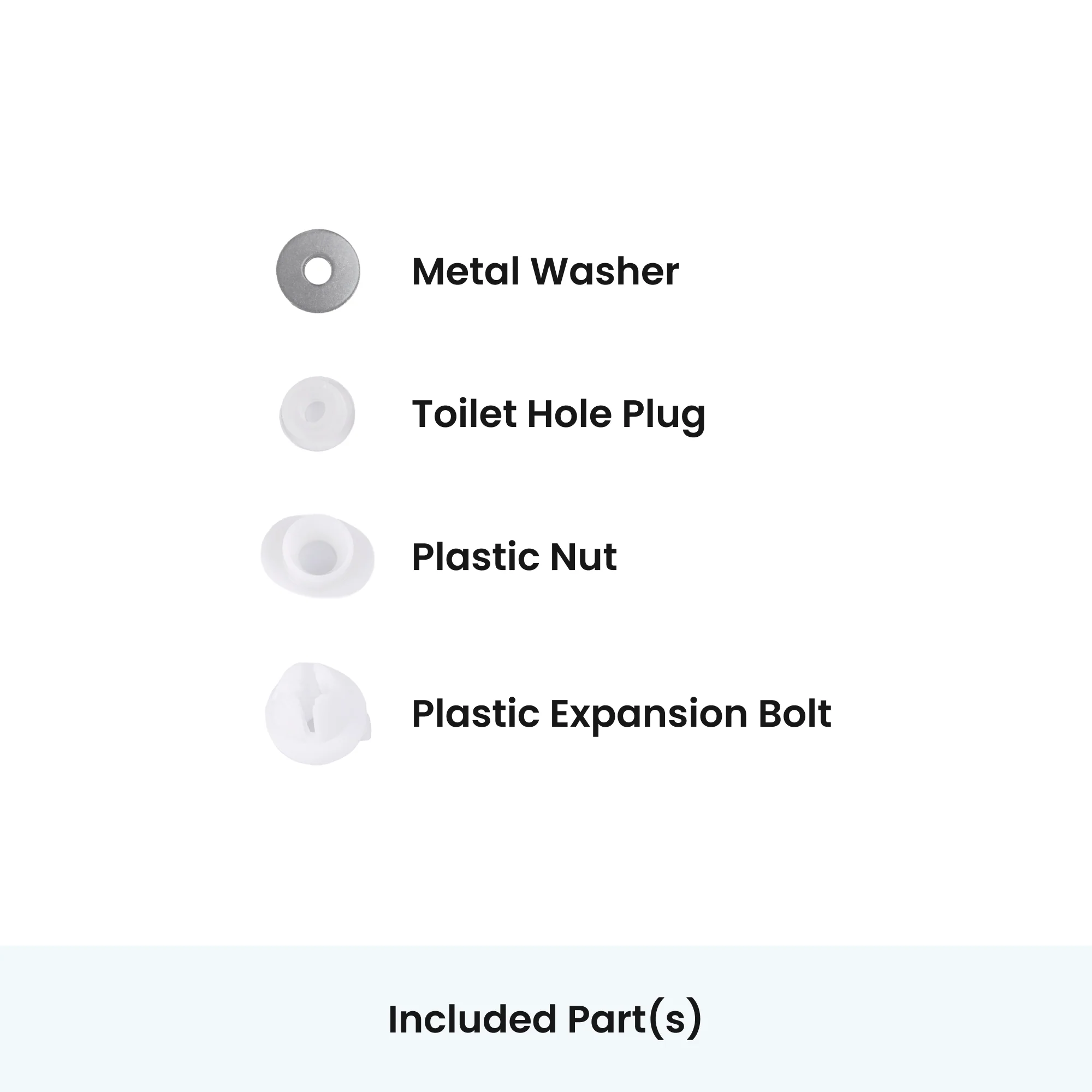

• 2 x Metal Washer
• 2 x Toilet Hole Plug
• 2 x Plastic Nut
• 2 x Plastic Expansion Bolt

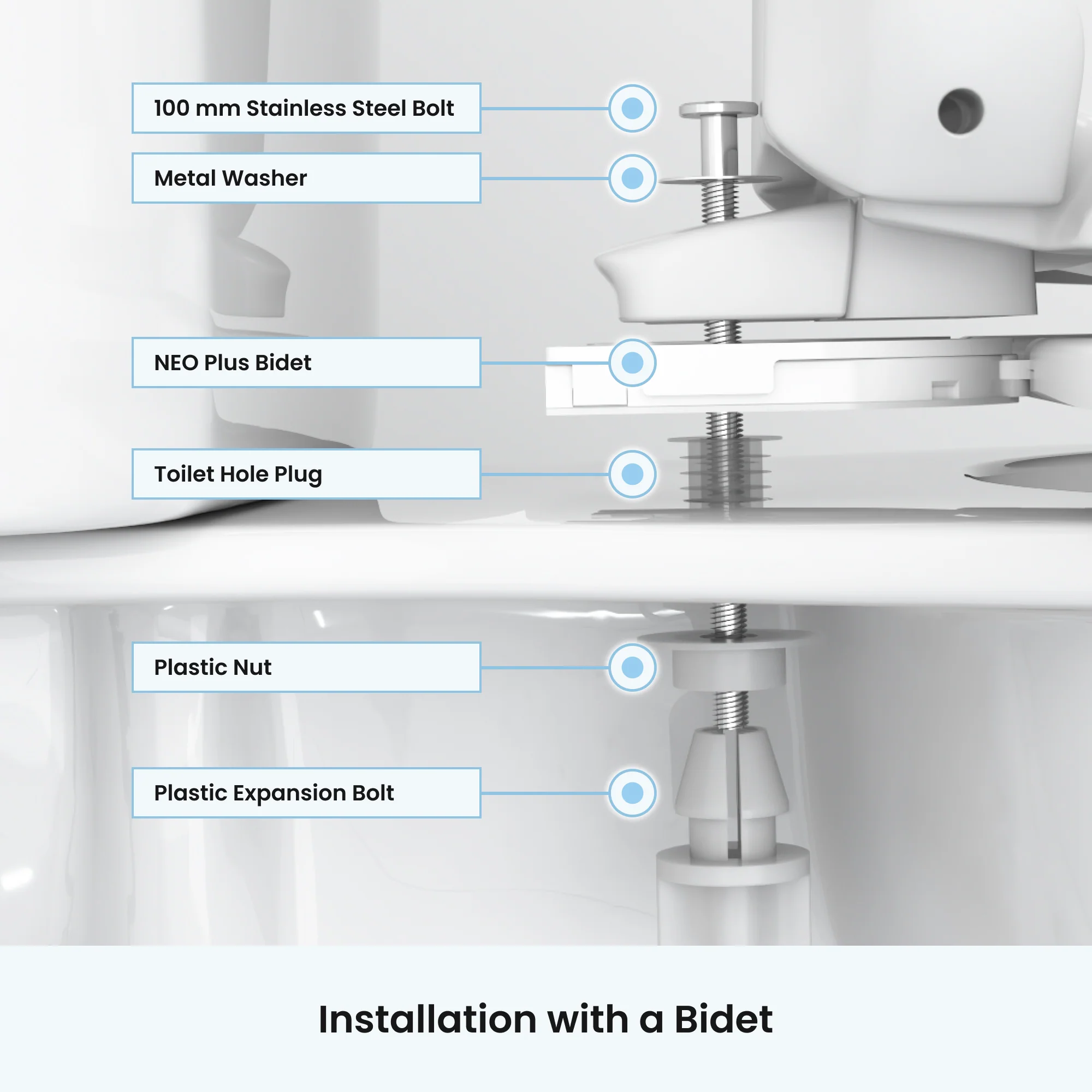

Installation Steps with LUXE Bidet

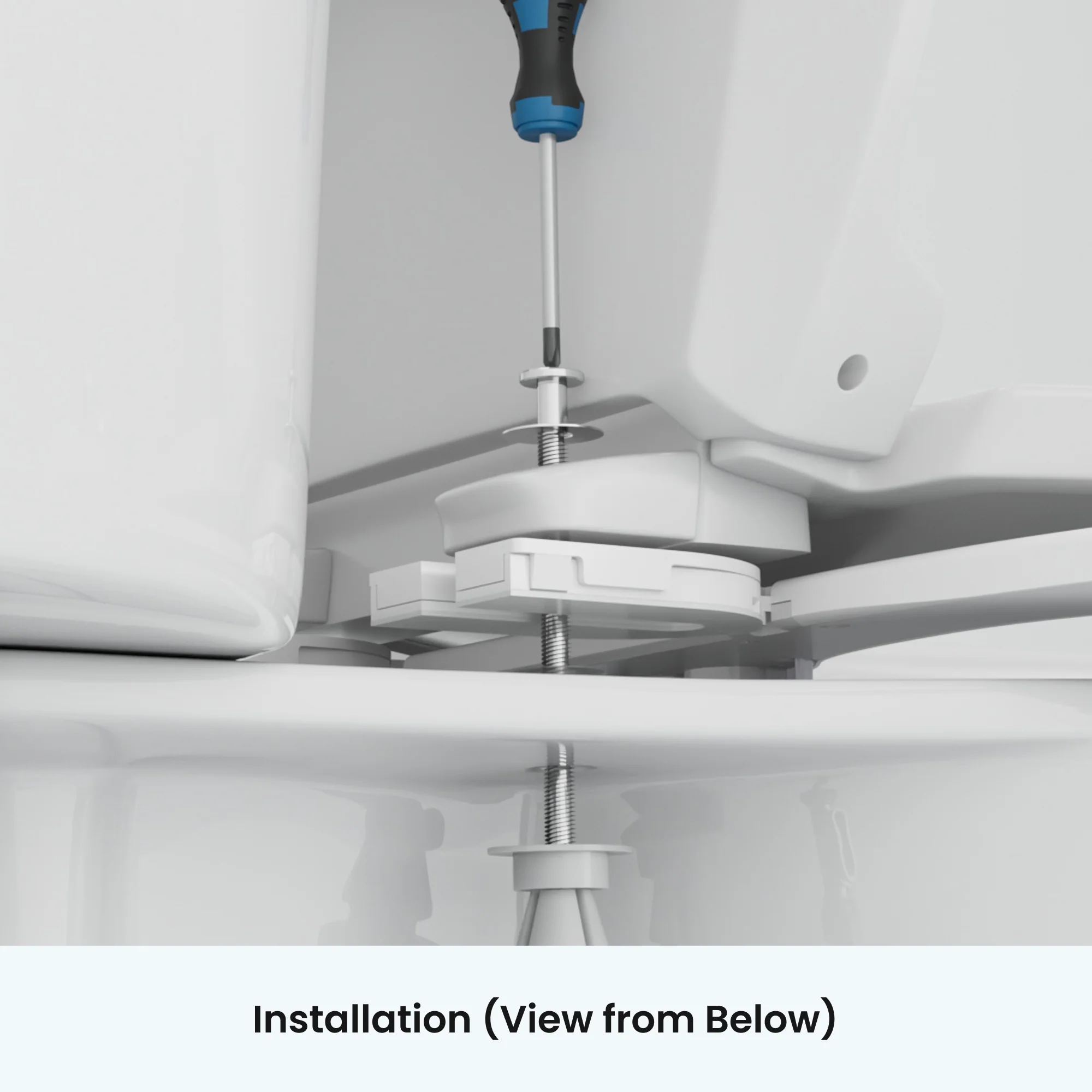

1. Insert the Toilet Hole Plugs into the holes from the top of the toilet bowl.

2. Lay the bidet attachment over the toilet bowl. Then place the toilet seat on top of the bidet, aligning the bidet and toilet seat at the bolt holes.

3. Ensure that the Stainless Steel Bolts have the Metal Washers and insert them through the holes from the top of the toilet.

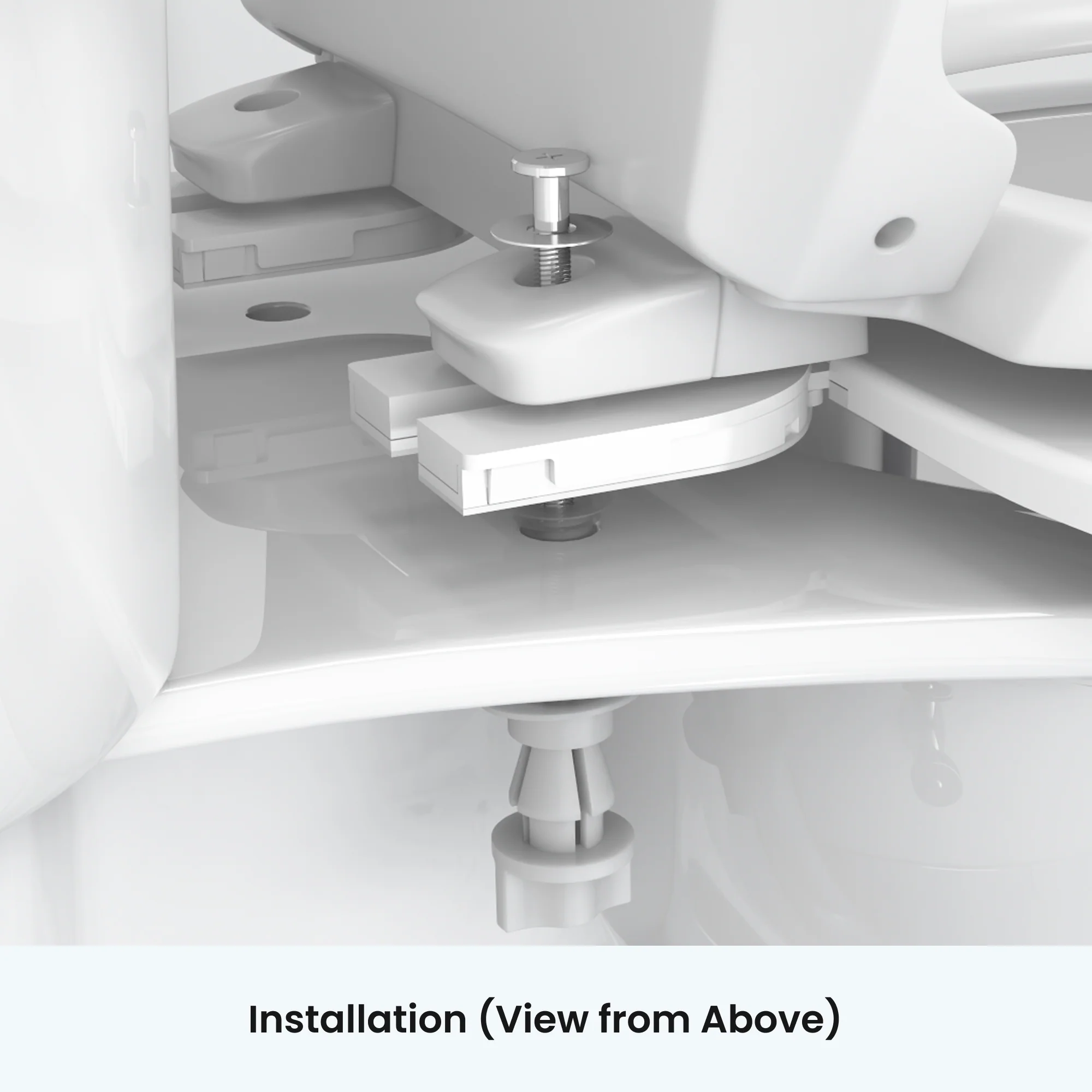

4. From the underside of the toilet bowl, insert the Plastic Nuts and Expansion Bolts, securing them onto the bolts.

5. To secure the parts together, hold the bottom pieces while turning the bolts clockwise until all parts are secure.
